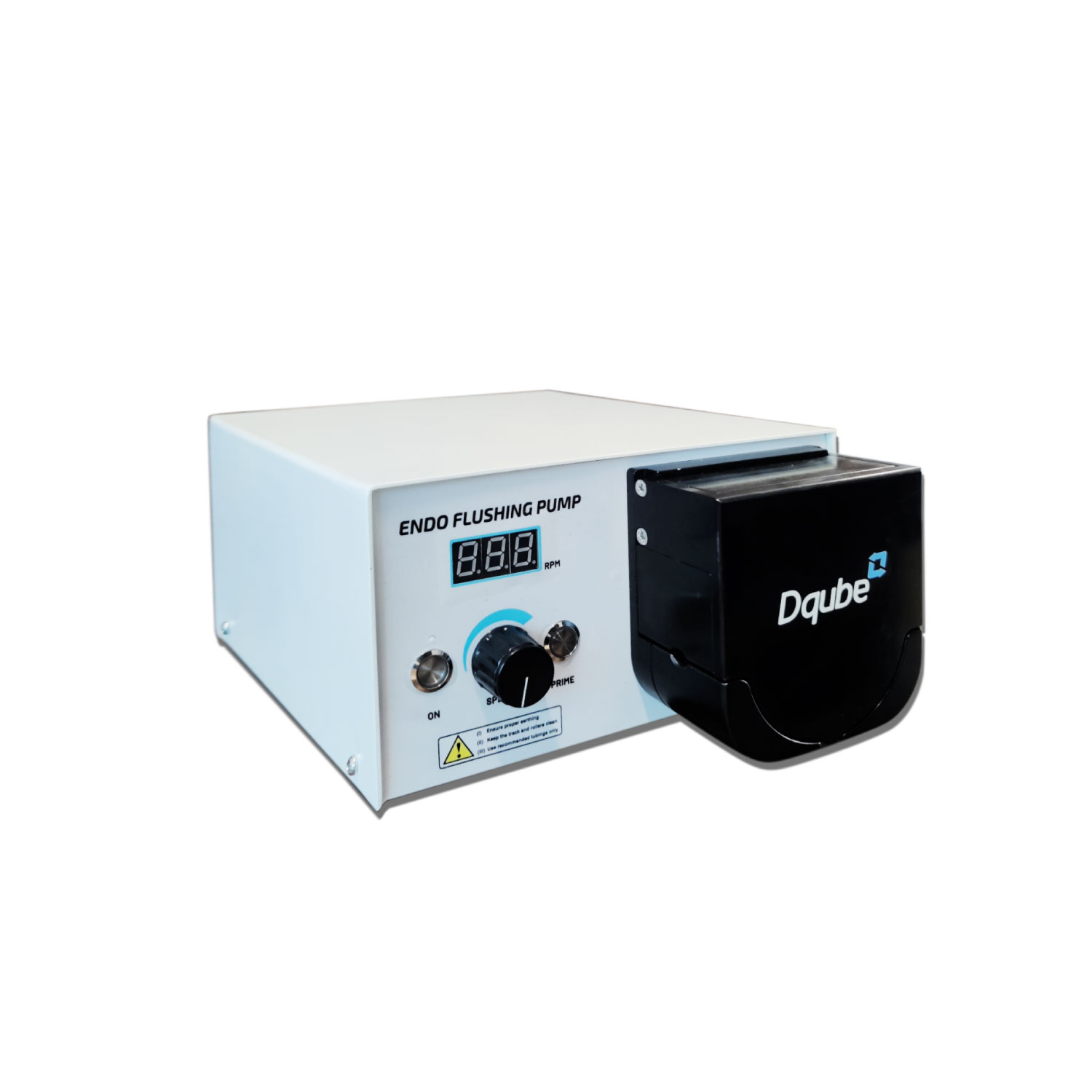

Flushing Pump

ENDO5

In endoscopic procedures, the operation site may be contaminated with chime or blood residue in the gastrointestinal tract. The ITPL endoscopic flushing pump was designed to ensure full comfort and safety during surgeries. The pump makes it possible to quickly rinse the gastrointestinal tract using physiological saline directly through the endoscope’s rinsing opening or by using endoscopic instruments.

Description

Irrigation of the Operating Site is a Very Important Element of Any Endoscopic Procedure

Assures good visibility and clean operating site
Reduces tissue adhesion on endoscopic instruments
Irrigation using physiological saline increases tissue
Conductivity – faster electrosurgical effects
Clear information of the fluid flow parameters at the digital display
Quick and easy fluid flow adjustment from the pump control panel
Microprocessor control of fluid flow
Low-noise, does not cause nuisance in the procedure room

Additional information

No. of Channel – One RPM – 10 to 196 Flow Rate – 1.2 lit to 120 lit/hr. (3 lit to 60 lit/hr. in 5 mm I.D. Tubing) (6 lit to 120 lit/hr. in 8 mm I.D. Tubing) Tubing(With 2 mm wall thickness) – 3 to 8 mm I.D. tubing M.O.C. of the Pump head Outer ARM – Anodized Aluminium ARM Cover – Anodized Aluminium Rotor – Anodized Aluminium Rollers – Carbon Filled Nylon Enclosure – 1owder Coated Aluminium Moto- PMDC geared motor Pressure – Up to 2 Kg / Sq. Cm Supply – 230v, 50Hz, Single phase AC Accuracy – +/-2% Dimension – 120 x 225 x 290mm (H x W x D) Weight – 8.5 Kg (Approx.)
