ENDO7

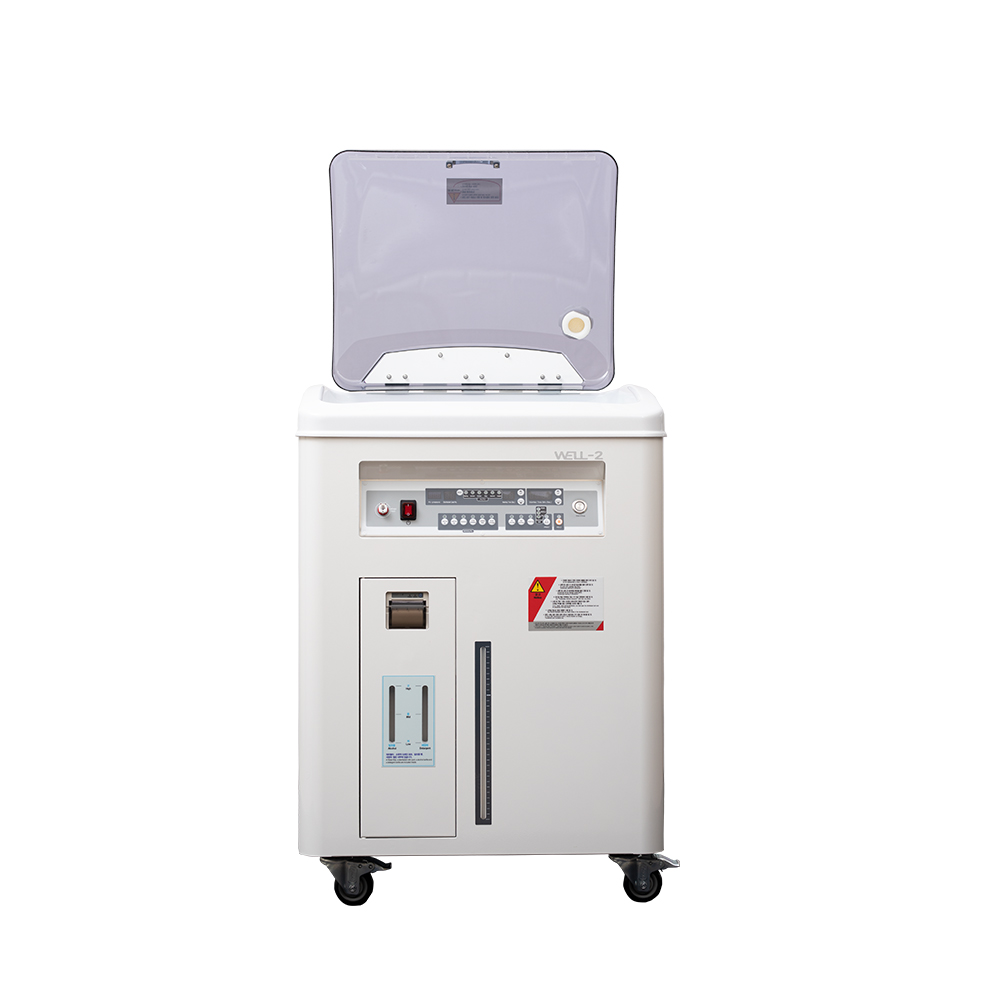

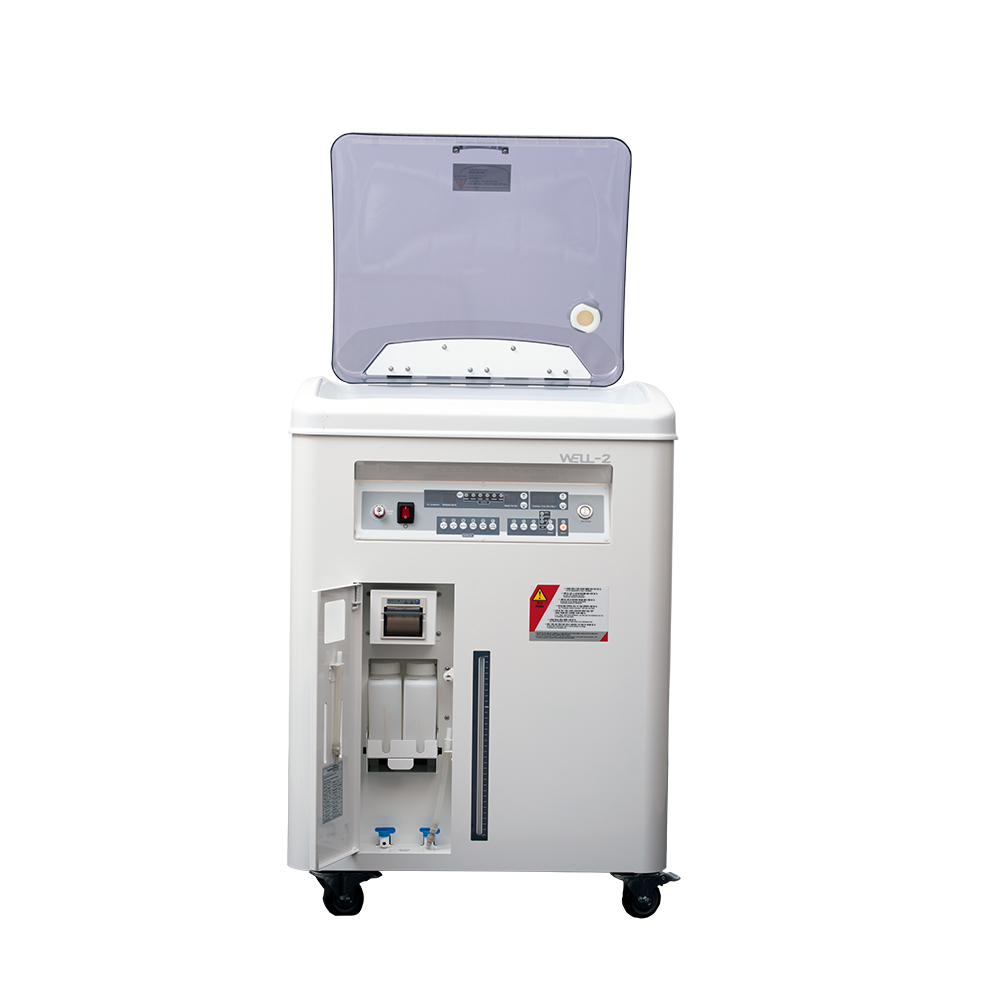

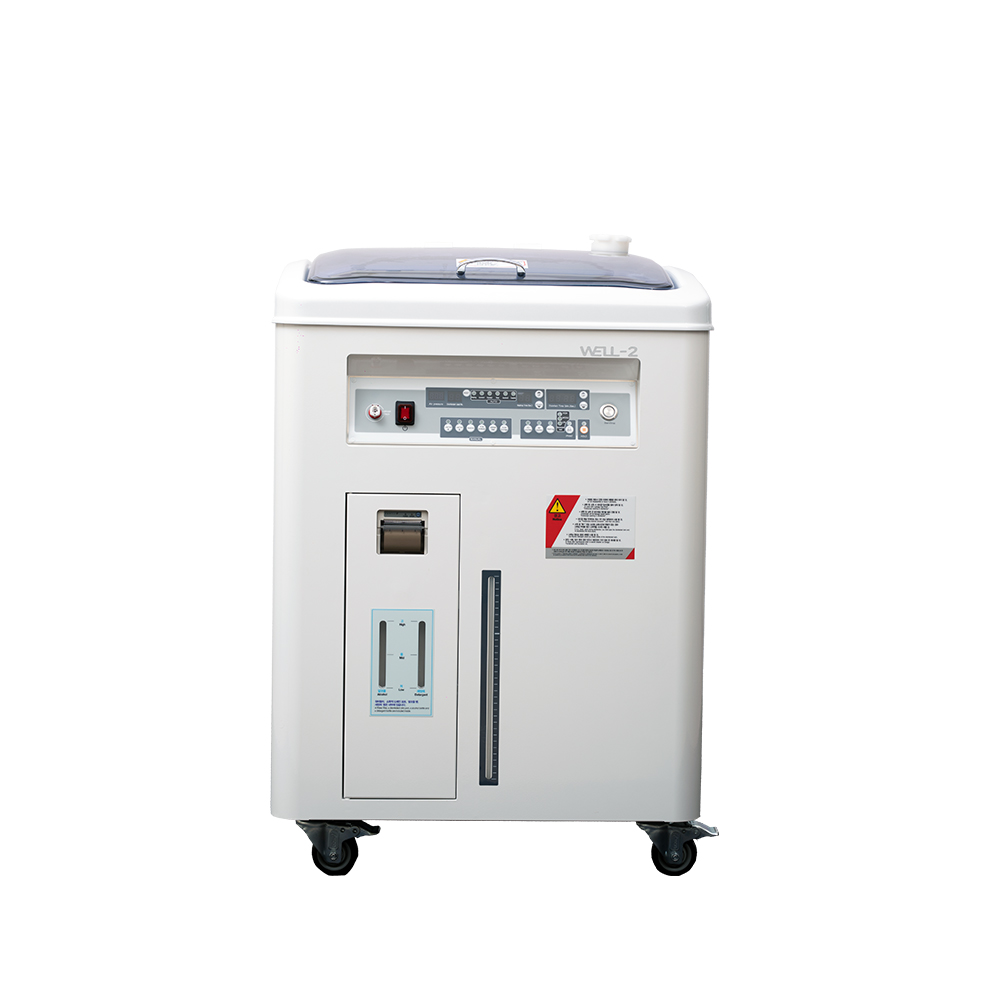

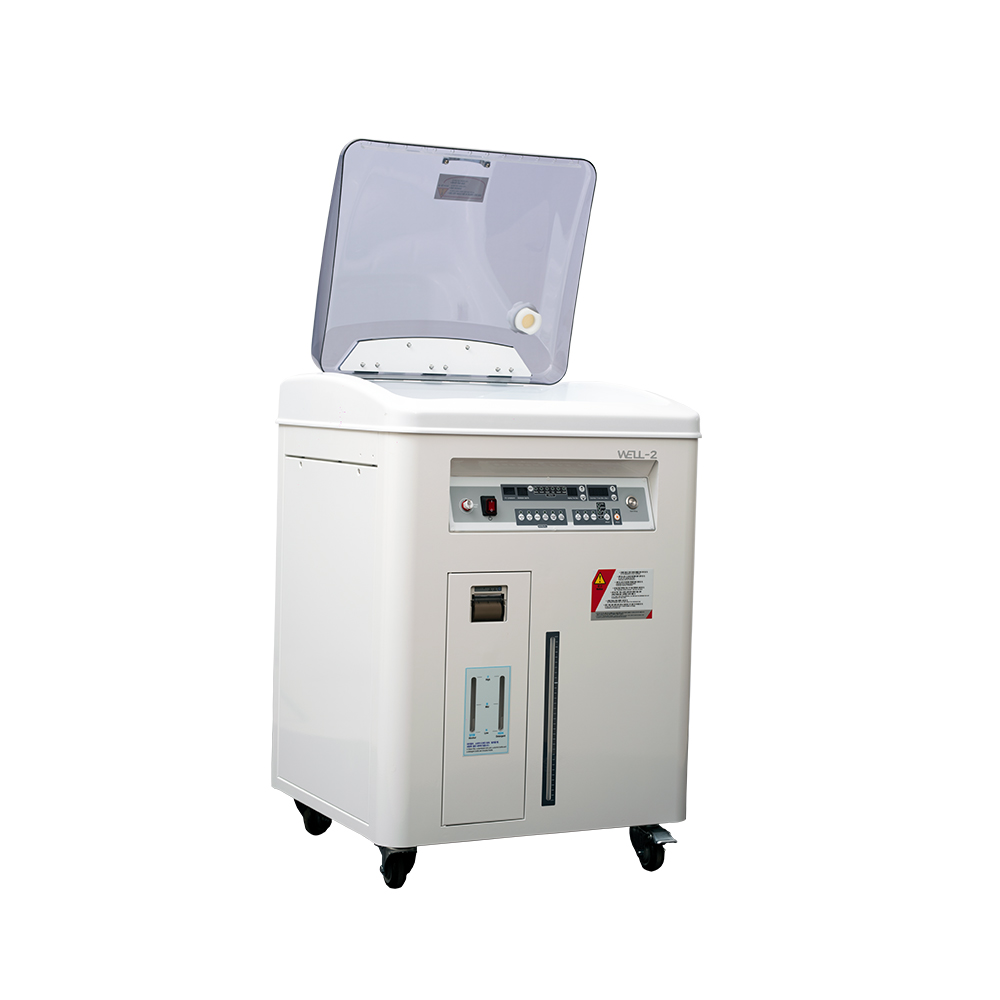

WELL-2 has Wide chamber. It can oer perfect disinfection and washing for endoscope and their accessories. Optional features of Well-2 are detergent, alcohol, printer and water pre-filtration system. Well-2 is also designed to wash two endoscopes at the same time. Well-2 guarantees the best specifications witch ensure perfect washing and disinfection of endoscopes and their accessories. Digital leak tester and dual flooding prevention system give user convenient and safe use of Well-2

Description

Various Additional Functions

Many functions provide user safe use of endoscope

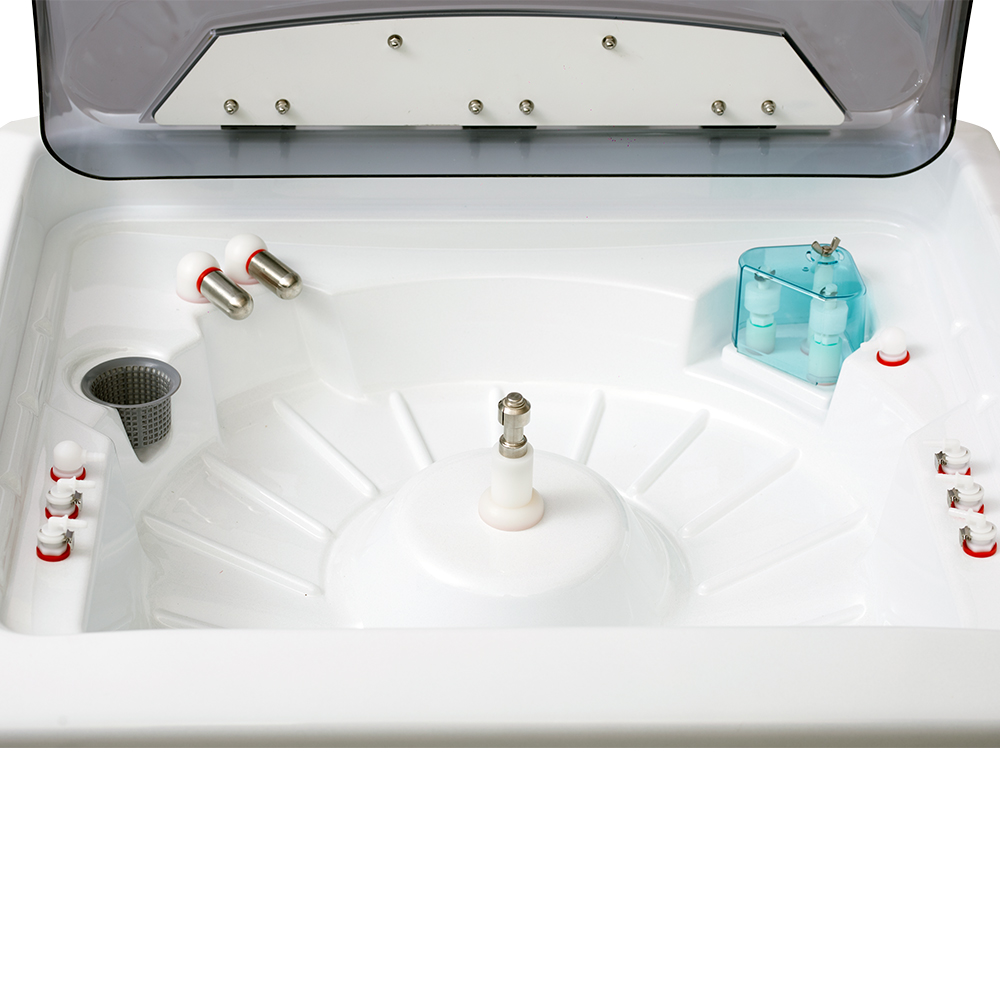

Wide Chamber for Two Endoscopes

Disinfect two endoscopes at the same time

Safety Device to Keep Disinfection Power

Check valve prevent flowing backward & dilution of disinfectant. Filter of disinfectant prevent foreign
substance from flowing in endoscope channel

Quick Disinfection Mode

This mode can disinfect endoscope quickly and easily

Additional information

Leak Test Digital Air Mode & Waterproof Mode Time Setting 1) Washing Time: 10 Sec. ~ 90 Sec. 2) Disinfection Time: 10 Sec. ~ 90 Min. 90 Sec. Tank Capacity 1) Water: 9L 2) Alcohol: 1L 3) Detergent: 1L Pump Leak test pump, Air pump, Drain pump, Disinfectant pump Chamber Capacity About 16L Connector 1 outlet for leak test, 6 outlet for cleaning Drainage 1 outlet for drainig disinfectant Voltage / Frequency AC 220 ~ 240V, 60HZ Power Consumption 1500W Dimension (W x L x H) 696 x 656 x 1045 mm (Closed Lid) 696 x 656 x 1445 mm (Opened Lid) Weight 81 kg
